TNT-LLM: Text Mining at Scale

TNT-LLM by Wan, et. al describes a taxonomy generation and classification system developed by Microsoft for their Bing Copilot application.

It generates a rich, interpretable taxonomy of user intents (or other categories) from raw conversation logs. This taxonomy can then be used downstream by LLMs to label logs, which in turn can be used as training data to adapt a cheap classifier (such as logistic regression classifier on embeddings) that can be deployed in your app.

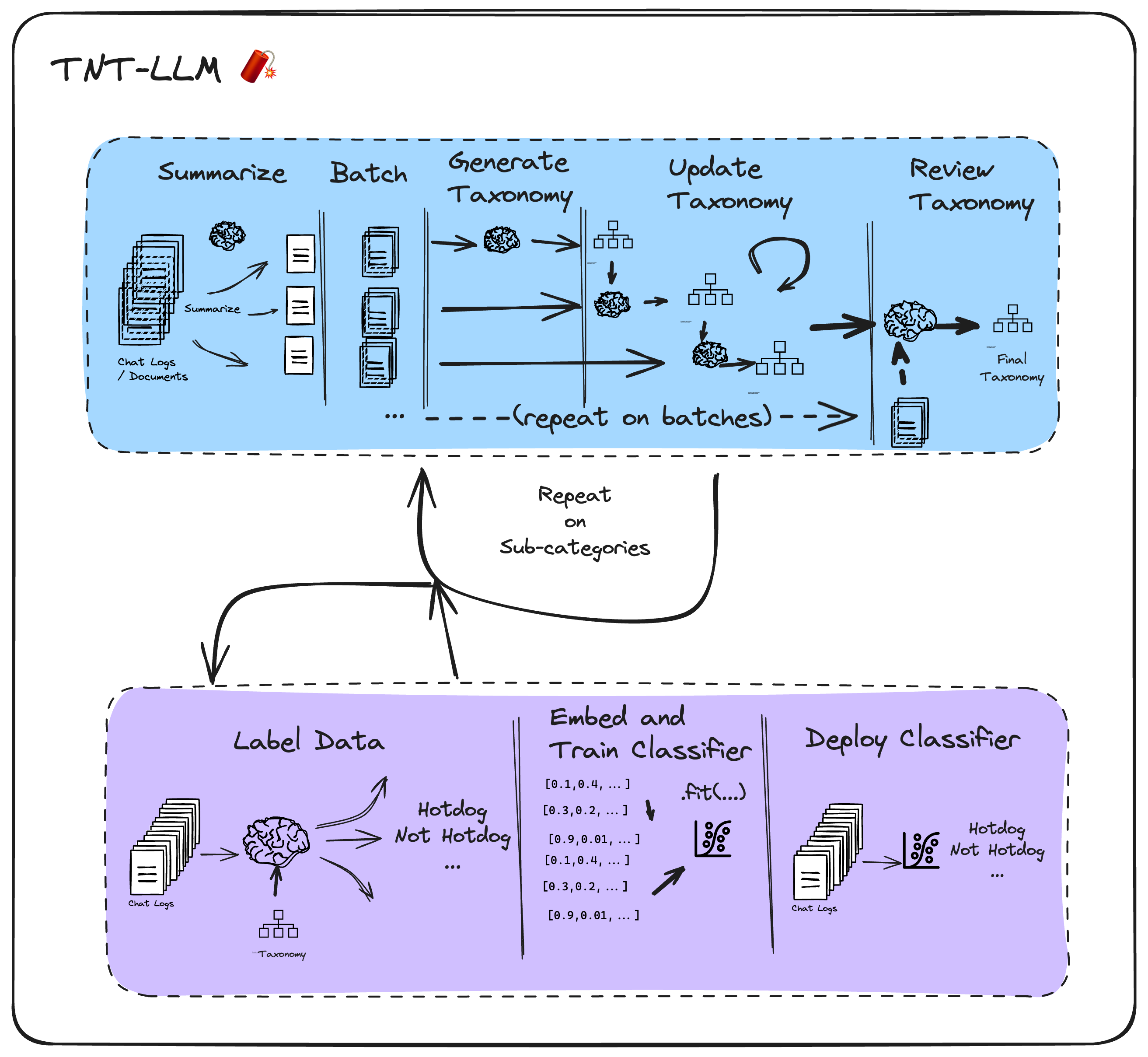

TNT-LLM has three main phases:

1. Generate Taxonomy
2. Label Training Data
3. Finetune classifier + deploy

When applying LangGraph in this notebook, we will focus on the first phase: taxonomy generation (blue in the diagram below). We then show how to label and fit the classifier in subsequent steps below.

To generate the taxonomy, TNT-LLM proposes 5 steps:

1. Summarize chat logs using a lower-cost LLM (batched over all logs in the sample)
2. Batch the logs into random minibatches
3. Generate an initial taxonomy from the first minibatch
4. Update the taxonomy on each subsequent minibatch via a ritique and revise prompt
5. Review the final taxonomy, scoring its quality and generating a final value using a final sample.

Prerequisites

In [ ]:

%%capture --no-stderr
%pip install -U langgraph langchain_anthropic langsmith
# For the embedding-based classifier use in phase 2
%pip install -U sklearn langchain_openai

In [ ]:

import os
from getpass import getpass

if "ANTHROPIC_API_KEY" not in os.environ:
    os.environ["ANTHROPIC_API_KEY"] = getpass("Enter your ANTHROPIC_API_KEY: ")

# (Optional) Enable tracing
os.environ["LANGCHAIN_TRACING_V2"] = "true"
os.environ["LANGCHAIN_PROJECT"] = "tnt-llm"

if "LANGCHAIN_API_KEY" not in os.environ:
    os.environ["LANGCHAIN_API_KEY"] = getpass("Enter your LANGCHAIN_API_KEY: ")

Graph State

Since each node of a StateGraph accepts the state (and returns an updated state), we'll define that at the outset.

Our flow takes in a list of documents, batches them, and then generates and refines candidate taxonomies as interpretable "clusters".

In [69]:

import logging
import operator
from typing import Annotated, List, Optional, TypedDict

logging.basicConfig(level=logging.WARNING)
logger = logging.getLogger("tnt-llm")


class Doc(TypedDict):
    id: str
    content: str
    summary: Optional[str]
    explanation: Optional[str]
    category: Optional[str]


class TaxonomyGenerationState(TypedDict):
    # The raw docs; we inject summaries within them in the first step
    documents: List[Doc]
    # Indices to be concise
    minibatches: List[List[int]]
    # Candidate Taxonomies (full trajectory)
    clusters: Annotated[List[List[dict]], operator.add]

1. Summarize Docs

Chat logs can get quite long. Our taxonomy generation step needs to see large, diverse minibatches to be able to adequately capture the distribution of categories. To ensure they can all fit efficiently into the context window, we first summarize each chat log. Downstream steps will use these summaries instead of the raw doc content.

In [8]:

import re

from langchain import hub
from langchain_anthropic import ChatAnthropic
from langchain_core.output_parsers import StrOutputParser
from langchain_core.runnables import RunnableConfig, RunnableLambda, RunnablePassthrough

summary_prompt = hub.pull("wfh/tnt-llm-summary-generation").partial(
    summary_length=20, explanation_length=30
)


def parse_summary(xml_string: str) -> dict:
    summary_pattern = r"<summary>(.*?)</summary>"
    explanation_pattern = r"<explanation>(.*?)</explanation>"

    summary_match = re.search(summary_pattern, xml_string, re.DOTALL)
    explanation_match = re.search(explanation_pattern, xml_string, re.DOTALL)

    summary = summary_match.group(1).strip() if summary_match else ""
    explanation = explanation_match.group(1).strip() if explanation_match else ""

    return {"summary": summary, "explanation": explanation}


summary_llm_chain = (
    summary_prompt
    | ChatAnthropic(model="claude-3-haiku-20240307")
    | StrOutputParser()
    # Customize the tracing name for easier organization
).with_config(run_name="GenerateSummary")
summary_chain = summary_llm_chain | parse_summary


# Now combine as a "map" operation in a map-reduce chain
# Input: state
# Output: state U summaries
# Processes docs in parallel
def get_content(state: TaxonomyGenerationState):
    docs = state["documents"]
    return [{"content": doc["content"]} for doc in docs]


map_step = RunnablePassthrough.assign(
    summaries=get_content
    # This effectively creates a "map" operation
    # Note you can make this more robust by handling individual errors
    | RunnableLambda(func=summary_chain.batch, afunc=summary_chain.abatch)
)


def reduce_summaries(combined: dict) -> TaxonomyGenerationState:
    summaries = combined["summaries"]
    documents = combined["documents"]
    return {
        "documents": [
            {
                "id": doc["id"],
                "content": doc["content"],
                "summary": summ_info["summary"],
                "explanation": summ_info["explanation"],
            }
            for doc, summ_info in zip(documents, summaries)
        ]
    }


# This is actually the node itself!
map_reduce_chain = map_step | reduce_summaries

2. Split into Minibatches

Each minibatch contains a random sample of docs. This lets the flow identify inadequacies in the current taxonomy using new data.

In [9]:

import random


def get_minibatches(state: TaxonomyGenerationState, config: RunnableConfig):
    batch_size = config["configurable"].get("batch_size", 200)
    original = state["documents"]
    indices = list(range(len(original)))
    random.shuffle(indices)
    if len(indices) < batch_size:
        # Don't pad needlessly if we can't fill a single batch
        return [indices]

    num_full_batches = len(indices) // batch_size

    batches = [
        indices[i * batch_size : (i + 1) * batch_size] for i in range(num_full_batches)
    ]

    leftovers = len(indices) % batch_size
    if leftovers:
        last_batch = indices[num_full_batches * batch_size :]
        elements_to_add = batch_size - leftovers
        last_batch += random.sample(indices, elements_to_add)
        batches.append(last_batch)

    return {
        "minibatches": batches,
    }

3.a Taxonomy Generation Utilities

This section of the graph is a generate -> update 🔄 -> review cycle. Each node shares a LOT of logic, which we have factored out into the shared functions below.

In [11]:

from typing import Dict

from langchain_core.runnables import Runnable


def parse_taxa(output_text: str) -> Dict:
    """Extract the taxonomy from the generated output."""
    cluster_matches = re.findall(
        r"\s*<id>(.*?)</id>\s*<name>(.*?)</name>\s*<description>(.*?)</description>\s*",
        output_text,
        re.DOTALL,
    )
    clusters = [
        {"id": id.strip(), "name": name.strip(), "description": description.strip()}
        for id, name, description in cluster_matches
    ]
    # We don't parse the explanation since it isn't used downstream
    return {"clusters": clusters}


def format_docs(docs: List[Doc]) -> str:
    xml_table = "<conversations>\n"
    for doc in docs:
        xml_table += f'<conv_summ id={doc["id"]}>{doc["summary"]}</conv_summ>\n'
    xml_table += "</conversations>"
    return xml_table


def format_taxonomy(clusters):
    xml = "<cluster_table>\n"
    for label in clusters:
        xml += "  <cluster>\n"
        xml += f'    <id>{label["id"]}</id>\n'
        xml += f'    <name>{label["name"]}</name>\n'
        xml += f'    <description>{label["description"]}</description>\n'
        xml += "  </cluster>\n"
    xml += "</cluster_table>"
    return xml


def invoke_taxonomy_chain(
    chain: Runnable,
    state: TaxonomyGenerationState,
    config: RunnableConfig,
    mb_indices: List[int],
) -> TaxonomyGenerationState:
    configurable = config["configurable"]
    docs = state["documents"]
    minibatch = [docs[idx] for idx in mb_indices]
    data_table_xml = format_docs(minibatch)

    previous_taxonomy = state["clusters"][-1] if state["clusters"] else []
    cluster_table_xml = format_taxonomy(previous_taxonomy)

    updated_taxonomy = chain.invoke(
        {
            "data_xml": data_table_xml,
            "use_case": configurable["use_case"],
            "cluster_table_xml": cluster_table_xml,
            "suggestion_length": configurable.get("suggestion_length", 30),
            "cluster_name_length": configurable.get("cluster_name_length", 10),
            "cluster_description_length": configurable.get(
                "cluster_description_length", 30
            ),
            "explanation_length": configurable.get("explanation_length", 20),
            "max_num_clusters": configurable.get("max_num_clusters", 25),
        }
    )

    return {
        "clusters": [updated_taxonomy["clusters"]],
    }

3. Generate initial taxonomy

In [40]:

# We will share an LLM for each step of the generate -> update -> review cycle
# You may want to consider using Opus or another more powerful model for this
taxonomy_generation_llm = ChatAnthropic(
    model="claude-3-haiku-20240307", max_tokens_to_sample=2000
)


## Initial generation
taxonomy_generation_prompt = hub.pull("wfh/tnt-llm-taxonomy-generation").partial(
    use_case="Generate the taxonomy that can be used to label the user intent in the conversation.",
)

taxa_gen_llm_chain = (
    taxonomy_generation_prompt | taxonomy_generation_llm | StrOutputParser()
).with_config(run_name="GenerateTaxonomy")


generate_taxonomy_chain = taxa_gen_llm_chain | parse_taxa


def generate_taxonomy(
    state: TaxonomyGenerationState, config: RunnableConfig
) -> TaxonomyGenerationState:
    return invoke_taxonomy_chain(
        generate_taxonomy_chain, state, config, state["minibatches"][0]
    )

4. Update Taxonomy

This is a "critique -> revise" step that is repeated N times.

In [33]:

taxonomy_update_prompt = hub.pull("wfh/tnt-llm-taxonomy-update")

taxa_update_llm_chain = (
    taxonomy_update_prompt | taxonomy_generation_llm | StrOutputParser()
).with_config(run_name="UpdateTaxonomy")


update_taxonomy_chain = taxa_update_llm_chain | parse_taxa


def update_taxonomy(
    state: TaxonomyGenerationState, config: RunnableConfig
) -> TaxonomyGenerationState:
    which_mb = len(state["clusters"]) % len(state["minibatches"])
    return invoke_taxonomy_chain(
        update_taxonomy_chain, state, config, state["minibatches"][which_mb]
    )

5. Review Taxonomy

This runs once we've processed all the minibatches.

In [34]:

taxonomy_review_prompt = hub.pull("wfh/tnt-llm-taxonomy-review")

taxa_review_llm_chain = (
    taxonomy_review_prompt | taxonomy_generation_llm | StrOutputParser()
).with_config(run_name="ReviewTaxonomy")


review_taxonomy_chain = taxa_review_llm_chain | parse_taxa


def review_taxonomy(
    state: TaxonomyGenerationState, config: RunnableConfig
) -> TaxonomyGenerationState:
    batch_size = config["configurable"].get("batch_size", 200)
    original = state["documents"]
    indices = list(range(len(original)))
    random.shuffle(indices)
    return invoke_taxonomy_chain(
        review_taxonomy_chain, state, config, indices[:batch_size]
    )

Define the Graph

With all the functionality defined, we can define the graph!

In [35]:

from langgraph.graph import StateGraph, START, END

graph = StateGraph(TaxonomyGenerationState)
graph.add_node("summarize", map_reduce_chain)
graph.add_node("get_minibatches", get_minibatches)
graph.add_node("generate_taxonomy", generate_taxonomy)
graph.add_node("update_taxonomy", update_taxonomy)
graph.add_node("review_taxonomy", review_taxonomy)

graph.add_edge("summarize", "get_minibatches")
graph.add_edge("get_minibatches", "generate_taxonomy")
graph.add_edge("generate_taxonomy", "update_taxonomy")


def should_review(state: TaxonomyGenerationState) -> str:
    num_minibatches = len(state["minibatches"])
    num_revisions = len(state["clusters"])
    if num_revisions < num_minibatches:
        return "update_taxonomy"
    return "review_taxonomy"


graph.add_conditional_edges(
    "update_taxonomy",
    should_review,
    # Optional (but required for the diagram to be drawn correctly below)
    {"update_taxonomy": "update_taxonomy", "review_taxonomy": "review_taxonomy"},
)
graph.add_edge("review_taxonomy", END)

graph.add_edge(START, "summarize")
app = graph.compile()

In [36]:

from IPython.display import Image

Image(app.get_graph().draw_png())

Out [36]:

Usage

The docs can contain any content, but we've found it works really well on chat bot logs, such as those captured by LangSmith.

We will use that as an example below. Update the project_name to your own LangSmith project.

You will likely have to customize the run_to_doc function below, since your expected keys may differ from those of this notebook's author.

In [193]:

from datetime import datetime, timedelta

from langsmith import Client

project_name = "YOUR PROJECT NAME"  # Update to your own project
client = Client()

past_week = datetime.now() - timedelta(days=7)
runs = list(
    client.list_runs(
        project_name=project_name,
        filter="eq(is_root, true)",
        start_time=past_week,
        # We only need to return the inputs + outputs
        select=["inputs", "outputs"],
    )
)


# Convert the langsmith traces to our graph's Doc object.
def run_to_doc(run) -> Doc:
    turns = []
    idx = 0
    for turn in run.inputs.get("chat_history") or []:
        key, value = next(iter(turn.items()))
        turns.append(f"<{key} idx={idx}>\n{value}\n</{key}>")
        idx += 1
    turns.append(
        f"""
<human idx={idx}>
{run.inputs['question']}
</human>"""
    )
    if run.outputs and run.outputs["output"]:
        turns.append(
            f"""<ai idx={idx+1}>
{run.outputs['output']}
</ai>"""
        )
    return {
        "id": str(run.id),
        "content": ("\n".join(turns)),
    }

Invoke

Now convert the runs to docs and kick off your graph flow. This will take some time! The summary step takes the longest. If you want to speed things up, you could try splitting the load across model providers.

In [21]:

from langchain.cache import InMemoryCache
from langchain.globals import set_llm_cache

# Optional. If you are running into errors or rate limits and want to avoid repeated computation,
# you can set this while debugging

set_llm_cache(InMemoryCache())

In [ ]:

# We will randomly sample down to 1K docs to speed things up
docs = [run_to_doc(run) for run in runs if run.inputs]
docs = random.sample(docs, min(len(docs), 1000))
use_case = (
    "Generate the taxonomy that can be used both to label the user intent"
    " as well as to identify any required documentation (references, how-tos, etc.)"
    " that would benefit the user."
)

stream = app.stream(
    {"documents": docs},
    {
        "configurable": {
            "use_case": use_case,
            # Optional:
            "batch_size": 400,
            "suggestion_length": 30,
            "cluster_name_length": 10,
            "cluster_description_length": 30,
            "explanation_length": 20,
            "max_num_clusters": 25,
        },
        # We batch summarize the docs. To avoid getting errors, we will limit the
        # degree of parallelism to permit.
        "max_concurrency": 2,
    },
)

for step in stream:
    node, state = next(iter(step.items()))
    print(node, str(state)[:20] + " ...")

Final Result

Below, render the final result as markdown:

In [202]:

from IPython.display import Markdown


def format_taxonomy_md(clusters):
    md = "## Final Taxonomy\n\n"
    md += "| ID | Name | Description |\n"
    md += "|----|------|-------------|\n"

    # Fill the table with cluster data
    for label in clusters:
        id = label["id"]
        name = label["name"].replace(
            "|", "\\|"
        )  # Escape any pipe characters within the content
        description = label["description"].replace(
            "|", "\\|"
        )  # Escape any pipe characters
        md += f"| {id} | {name} | {description} |\n"

    return md


Markdown(format_taxonomy_md(step["__end__"]["clusters"][-1]))

Out [202]:

<IPython.core.display.Markdown object>

Phase 2: Labeling

Now that we have our taxonomy, it's time to label a subset of our data to train a classifier.

Input classification can be useful for anything from in-line prompt optimization (tailor the prompt for each classified intent), to system improvements (identifying categories for which the system doesn't produce good responses) to product analytics (understand which intent categories could be improved to drive profits).

The problem is that LLM-based tagging can be expensive.

Embeddings can be ~100x cheaper to compute, and a simple logistic regression classifier on top of that would add negligible cost.

Let's tag and train a classifier!

Label Training Data

Use an LLM to label the data in a fully-automated fashion. For better accuracy, you can sample a portion of the results to label by hand as well to verify the quality.

In [89]:

labeling_prompt = hub.pull("wfh/tnt-llm-classify")

labeling_llm = ChatAnthropic(model="claude-3-haiku-20240307", max_tokens_to_sample=2000)
labeling_llm_chain = (labeling_prompt | labeling_llm | StrOutputParser()).with_config(
    run_name="ClassifyDocs"
)


def parse_labels(output_text: str) -> Dict:
    """Parse the generated labels from the predictions."""
    category_matches = re.findall(
        r"\s*<category>(.*?)</category>.*",
        output_text,
        re.DOTALL,
    )
    categories = [{"category": category.strip()} for category in category_matches]
    if len(categories) > 1:
        logger.warning(f"Multiple selected categories: {categories}")
    label = categories[0]
    stripped = re.sub(r"^\d+\.\s*", "", label["category"]).strip()
    return {"category": stripped}


labeling_chain = labeling_llm_chain | parse_labels

In [148]:

final_taxonomy = step["__end__"]["clusters"][-1]
xml_taxonomy = format_taxonomy(final_taxonomy)
results = labeling_chain.batch(
    [
        {
            "content": doc["content"],
            "taxonomy": xml_taxonomy,
        }
        for doc in docs
    ],
    {"max_concurrency": 5},
    return_exceptions=True,
)
# Update the docs to include the categories
updated_docs = [{**doc, **category} for doc, category in zip(docs, results)]

In [ ]:

if "OPENAI_API_KEY" not in os.environ:
    os.environ["OPENAI_API_KEY"] = getpass("Enter your OPENAI_API_KEY: ")

In [149]:

from langchain_openai import OpenAIEmbeddings

# Consider using other embedding models here too!
encoder = OpenAIEmbeddings(model="text-embedding-3-large")
vectors = encoder.embed_documents([doc["content"] for doc in docs])
embedded_docs = [{**doc, "embedding": v} for doc, v in zip(updated_docs, vectors)]

Train Classifier

Now that we've extracted the features from the text, we can generate the classifier on them.

In [196]:

import numpy as np
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import accuracy_score, f1_score
from sklearn.model_selection import train_test_split
from sklearn.utils import class_weight

# Create a dictionary mapping category names to their indices in the taxonomy
category_to_index = {d["name"]: i for i, d in enumerate(final_taxonomy)}
category_to_index["Other"] = len(category_to_index)
# Convert category strings to numeric labels
labels = [
    category_to_index.get(d["category"], category_to_index["Other"])
    for d in embedded_docs
]

label_vectors = [d["embedding"] for d in embedded_docs]

X_train, X_test, y_train, y_test = train_test_split(
    label_vectors, labels, test_size=0.2, random_state=42
)

# Calculate class weights
class_weights = class_weight.compute_class_weight(
    class_weight="balanced", classes=np.unique(y_train), y=y_train
)
class_weight_dict = dict(enumerate(class_weights))

# Weight the classes to partially handle imbalanced data
model = LogisticRegression(class_weight=class_weight_dict)
model.fit(X_train, y_train)

train_preds = model.predict(X_train)
test_preds = model.predict(X_test)

train_acc = accuracy_score(y_train, train_preds)
test_acc = accuracy_score(y_test, test_preds)
train_f1 = f1_score(y_train, train_preds, average="weighted")
test_f1 = f1_score(y_test, test_preds, average="weighted")

print(f"Train Accuracy: {train_acc:.3f}")
print(f"Test Accuracy: {test_acc:.3f}")
print(f"Train F1 Score: {train_f1:.3f}")
print(f"Test F1 Score: {test_f1:.3f}")

Train Accuracy: 0.515
Test Accuracy: 0.330
Train F1 Score: 0.493
Test F1 Score: 0.335

Phase 3: Deploy

Now that you have your classifier, you can easily deploy it and apply to future runs! All you need is to embed the input and apply your LogisticRegression classifier. Let's try it. We will use python's joblib library to serialize our sklearn classifier. Below is an example:

In [197]:

from joblib import dump as jl_dump

categories = list(category_to_index)

# Save the model and categories to a file
with open("model.joblib", "wb") as file:
    jl_dump((model, categories), file)

To deploy

When deploying, you can load the classifier and initialize your embeddings encoder. They fit together easily using LCEL:

In [198]:

from joblib import load as jl_load
from langchain_openai import OpenAIEmbeddings

loaded_model, loaded_categories = jl_load("model.joblib")
encoder = OpenAIEmbeddings(model="text-embedding-3-large")


def get_category_name(predictions):
    return [loaded_categories[pred] for pred in predictions]


classifier = (
    RunnableLambda(encoder.embed_documents, encoder.aembed_documents)
    | loaded_model.predict
    | get_category_name
)

Example:

Assuming you've had some more data come in, you can fetch it and apply it below

In [194]:

client = Client()

past_5_min = datetime.now() - timedelta(minutes=5)
runs = list(
    client.list_runs(
        project_name=project_name,
        filter="eq(is_root, true)",
        start_time=past_5_min,
        # We only need to return the inputs + outputs
        select=["inputs", "outputs"],
        limit=100,
    )
)
docs = [run_to_doc(r) for r in runs]

In [199]:

classes = classifier.invoke([doc["content"] for doc in docs])
print(classes[:2])

INFO:httpx:HTTP Request: POST https://api.openai.com/v1/embeddings "HTTP/1.1 200 OK"

['Interacting with Databases', 'Optimizing Conversational Retrieval']

Conclusion

Congrats on implementing TNT-LLM! While most folks use clustering-based approaches like LDA, k-means, etc. it can often be hard to really interpret what each cluster represents. TNT-LLM generates human-interpretable labels you can use downstream to monitor and improve your application.

The technique also lends itself to hierarchical sub-categorizing: once you have the above taxonomy, use it to label your data, then on each sub-category, generate a new taxonomy using a similar technique to the one described above!
